PROFI UXTLH
- VISIOTRONIC control: single button control with remaining time indicator together with text and graphic display.
- SENSO-ACTIVE resource management: constantly measures the quality of the wash water and keeps the amount of rinsing needed in each rinse cycle to the minimum in order to guarantee a fully hygienic wash result.
- POWER wash: high-pressure washing to wash heavily soiled wash items
- Exhaust energy storage: the fully enclosed 4-sided hood keeps steam and energy inside the system: energy savingup to 5 kW; less humidity in the kitchen area and better hygienic conditions.
- CLIP-IN wash and rinse arms: wash and rinse arms can be removed with one hand and without any tools.
- USB-interface: comfortable download of operational data in form of a protocol via USB.
- GENIUS-X² fine filter system: advanced filter system with prewash function reduces detergent consumption up to 35 %.
- ROTOR-X wash system: separate rotating upper and lower 4-spoke wash arms deliver dynamic wash power.
- The optional drain heat recovery transfers heat from hot drain water to the fresh-water supply, saving up to 8.6 kW.
- Loading height L: above-average loading height of 880 mm (with rack 850 mm).
- Intelligent energy management: the available energy is used continuously. Thus, at a low total loading value the heating time gets reduced.
- Interlocked strainer: prevents operation without tank strainer.
- EASY-CLEAN concept: blue markings in the machine help the operator to identify the components which require cleaning.
- Hygiene programme: for removal of calcium carbonate and other deposits from wash chamber.

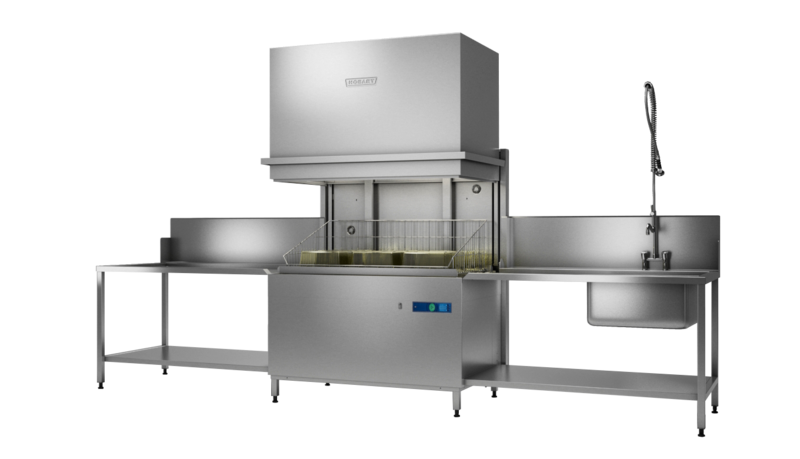

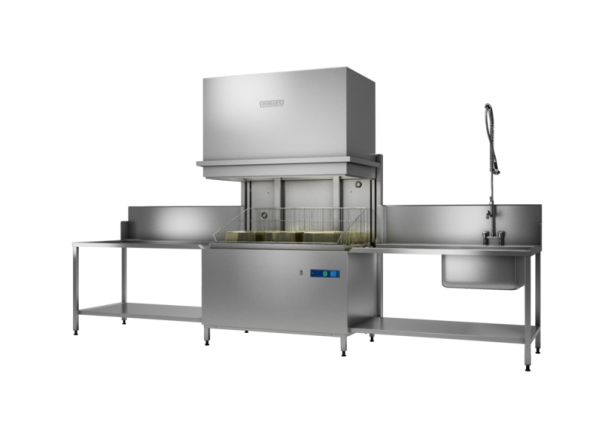

- Hood-type utensil washer
- Useable inside dimensions w x d x h: 1320 x 735 x 850 mm
- Nominal capacity up to 30 cycles/h
- 5 automatic cycles: short, standard, intensive, continuous, hygiene
- Double walled housing
- Multi-Setting: booster capacity may be reduced from 15.3 kW to 9.1 kW if connected with hot water
- Strainer soil sensor
- Refill signal (detergent / rinse aid)
- Self-cleaning programme
- Ready to install - completely equipped: fill / drain hose, electrical cable, detergent dispenser, rinse aid dispenser, rinse pump, drain pump, back-flow preventer, tank heating
- Tank, frame, wash / rinse arms and panels are stainless steel 1.4301
VARIANTS
| Order number | Description |
|---|---|
| UXTLH-10A |
Basic model |
TECHNICAL DATA
| Cylce times* | 120 / 240 / 360 sec. and special cycles |
| Water consumption | 7.5 l/rack |
| Tank capacity | 130 l |
| Tank heating | 6.1 kW |
| Power supply | 400 / 50 / 3N |
| Booster loading - Standard | 15.3 kW |
| Booster loading - Alternative | 9.1 kW |
| Total loading - Standard | 21.6 kW | 3 x 35 A |
| Total loading - Alternative | 15.6 kW | 3 x 35 A |
| Wash pump | 2 x 2.9 kW | 2 x 1,150 l/min |
| Rack size | 1,240 x 700 mm |
| Loading height | 880 mm |
| Noise level | 68 dB (A) |
| Weight (gross / net) | 435 / 415 kg |
*Thermostop guarantees required temperatures with cold water connection, the actual cycle times extend accordingly.
For machine protection the water hardness should not exceed 3°dH, if higher we recommend using an integrated water softener or an external water softener of the product line HYDROLINE PROTECT.
ACCESSORIES
| Order number | Description |
|---|---|
| SEF-15/112 |
Separate tank fill |
| SEF-15/126 |
Automatic hoodlift |
| SEF-16/018 |
Back panel |
| SEF-15/108 |
Integrated drain heat recovery |
| ML71619 |
Rack assortment UXTH: |
| 01-539990-001 |
Roller rack |
| 323637 |
Insert |
| 323753 |
Insert |
